Antena marinha do modem do roteador do ganho alto da intensificador impermeável exterior exterior do sinal do telefone móvel de gsm/3g/lte4g/5g omnidirecional

You choose the frequency specifications we will deliver, please do not choose the wrong, if not clear, please contact customer service.

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Electrical parameters:

Frequency :(698-960/1710-2700mhz medium and small)(698-6000mhz large)

Gain: small 12DB/ medium 18DB/ large 28DB

Standing wave :2.0 or less

Impedance: 50 Ω

Vertical polarization mode:

Radiation direction: omnidirectional

Maximum power :100w

Surge protection: DC ground

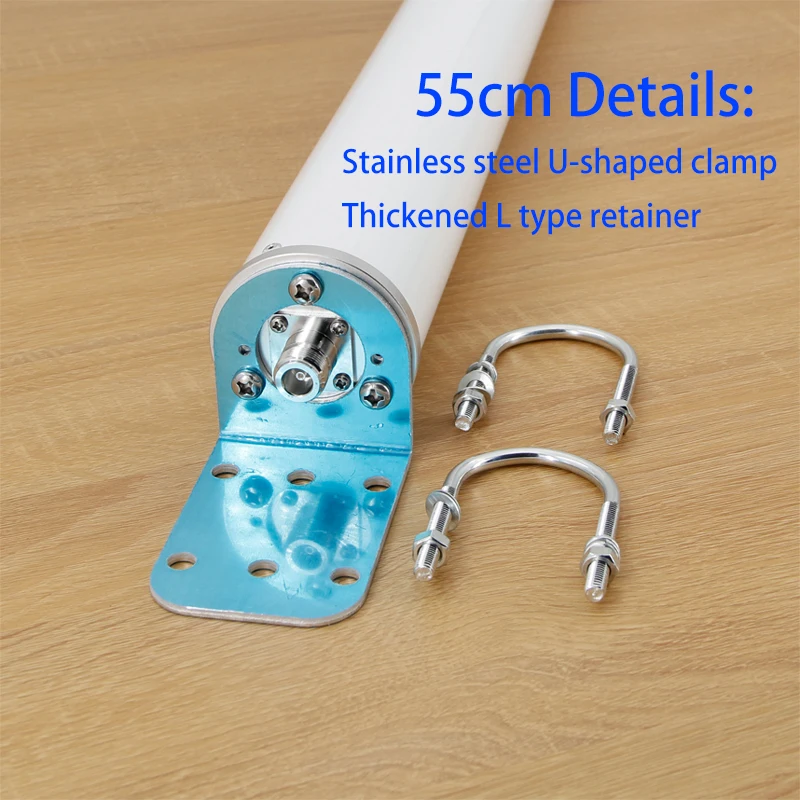

Connector type :N-K female connector

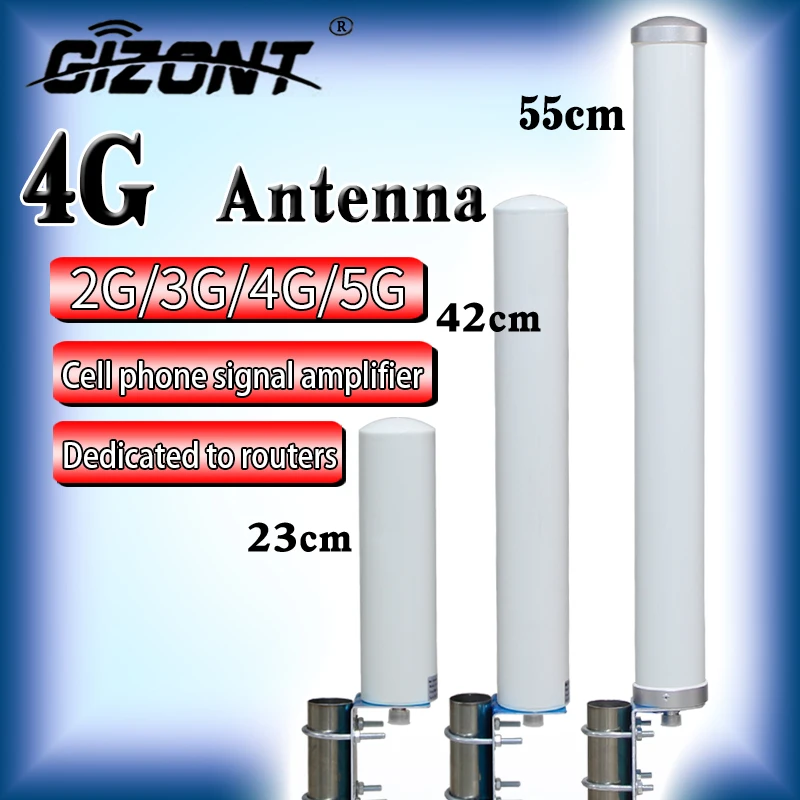

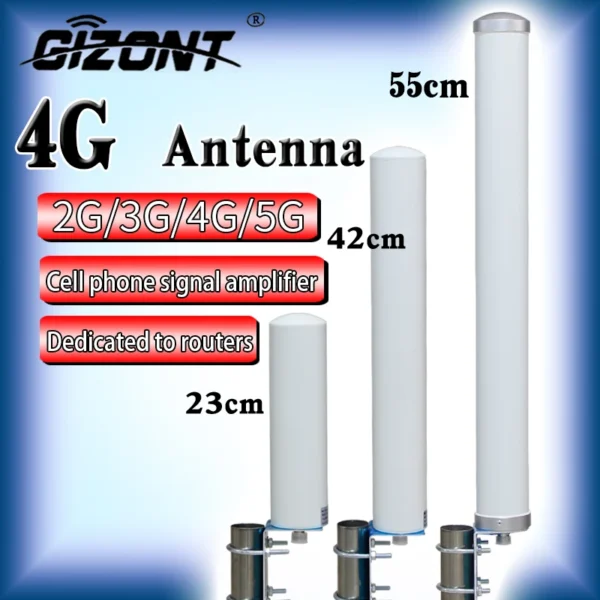

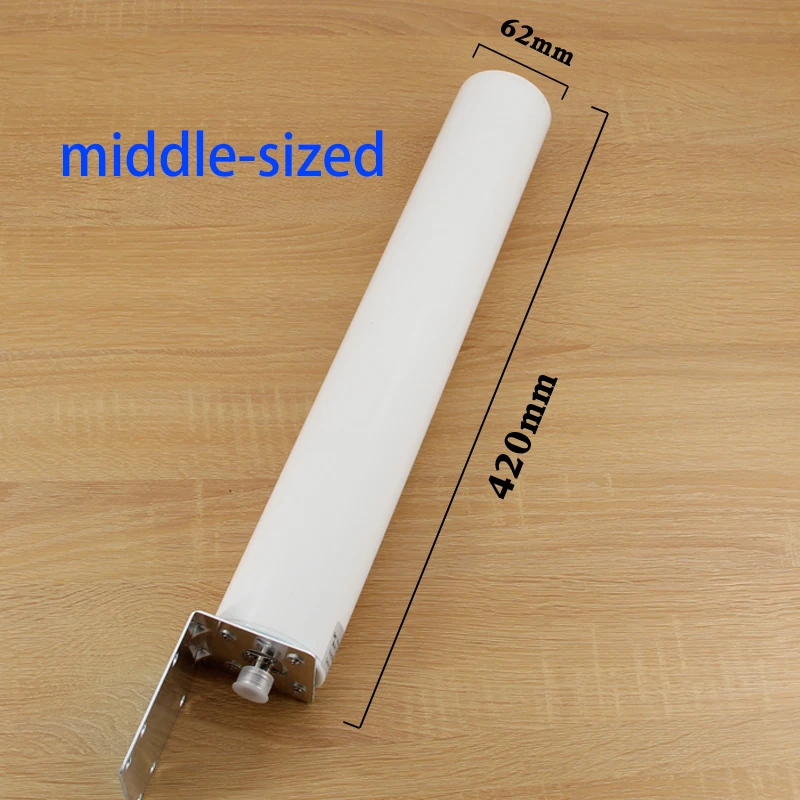

Antenna size :230 * 60mm / 430 * 60mm / 550 * 60mm

Radiation oscillator material: Aluminum (medium)/ copper (large)

Exterior material :PVC(medium and small size)/FRP(large size)
